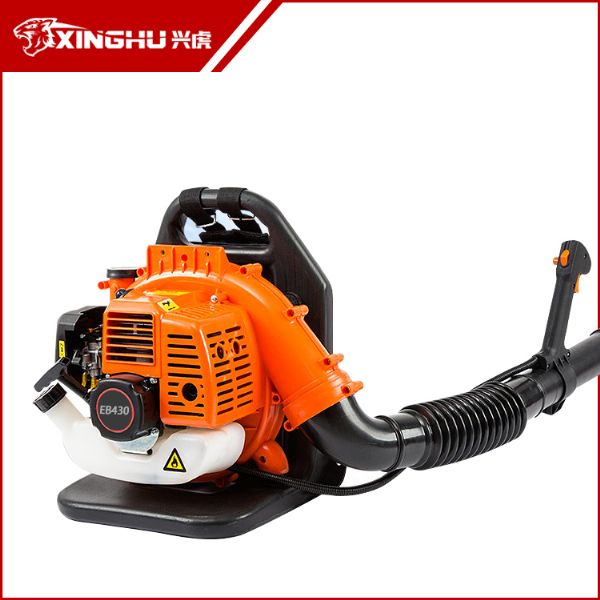

Model:EB430

Engine Type:Air cooled,two-stroke,single cyiinder gasoline engine

Ignition System：Flywheel Magneto,capacitor discharge ignition type

Spark plug：A T4 117Gap（0.6~0.7）mm

Exhaust System：Spark Arrestor Muffler

Fuel：Mixed(Gasoline and Two-stroke Oil)

Oil：30:1 High Performance.two-stroke air cooled engine oil

Idel Speed：（2600-3000）/min

Wide Open Throttle Speed：≥7000/min

Displacement：42.7cc

Bore：40.0mm

Stroke：34.0mm

Fuel Consumption：≤610g/Kw.h

Vibration values：≤15m/s2

Sound Power values：≤108dB（A）

Maximum output：1.25kw/6800/min

Fuel Tank Capacity：1litres

Air velocity：≥60m/s

Net weight:7.8kg

Dimension(mm):410x330x485
